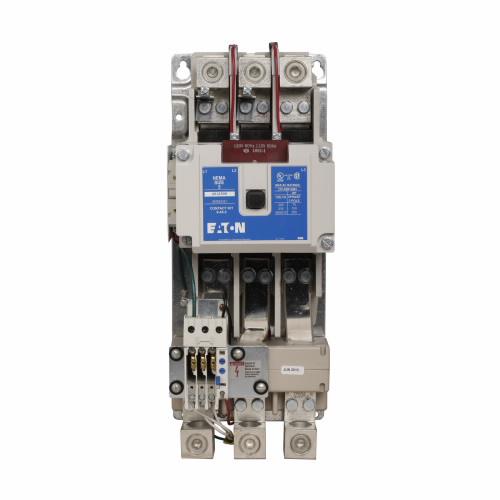

AN16SN0AB - Eaton - Electric Motor Starter 270 Amp - 3 Pole - 600 Volt

TypeFull Voltage- Non-ReversingPower Rating/Voltage75 HP at 208 Volt- 100 HP at 240 Volt- 150 HP at 380 Volt- 200 HP at 480/600 Volt 3-PhaseCurrent Rating270 AmpPhase3Coil Voltage110 Volt AC at 50 Hertz- 120 Volt AC at 60 HertzAuxiliary Contact1NOSizeNEMA 5Enclosure TypeOpenOverloadsBi-Metallic Ambient Compensated Overload RelayConstruction StandardNEMAModelFreedom- AN16Additional InformationNumber of Poles 3- Mounting Type Horizontal- Approval UL- CSAFeatures/BenefitsHorizontal or Vertical Mounting on Upright Panel for Application Freedom- Screw Type Power Terminals have Captive- Backed-Out Self-Lifting Pressure Plates with Screws—Reduced Wiring Time- Accessible Terminals for Easy Wiring. Optional Fingerproof Shields Available to Prevent Electrical Shock- Top Located Coil Terminals Convenient and Readily Accessible. 45 MM Contactor Magnet Coils have Three Terminals- Permitting Either Top or Diagonal Wiring—Easy to Replace European or U.S. Style Starters or Contactors without Changing Wiring Layout- Easy Coil Change and Inspectable/Replaceable Contacts
